How to create a Blank row in gridview

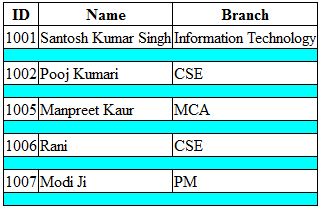

In some situations we need to add a blank row between GridView rows. The following program shows how to add a blank row between gridview rows.



Database We are using SQL DATABASE:-


     Create table  tblRecord
      (
       Id int primary key, Name varchar(200),Branch varchar(50)
      )
--Insert some record


    --USER STORE PROCETURE

    create proc USP_SelecttblRecord
     As
     Begin
           Select * from tblRecord
    End



Default.aspx code:-


    <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="Default" %>

<!DOCTYPE html>

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title></title>
</head>
<body>
    <form id="form1" runat="server">
    <div>
    <asp:GridView ID="gvDetail" runat="server" OnRowCreated="gvDetail_RowCreated" OnRowDataBound="gvDetail_RowDataBound" AutoGenerateColumns="false">
        <Columns>
				  <asp:BoundField DataField="Id" HeaderText="ID" />
				  <asp:BoundField DataField="Name" HeaderText="Name" />
				  <asp:BoundField DataField="Branch" HeaderText="Branch" />

			</Columns>

    </asp:GridView>
    </div>
    </form>
</body>
</html>




C# Source Code:-


using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data;
using System.Data.SqlClient;

public partial class Default7 : System.Web.UI.Page
{
    int id = 0;
    int rowIndex = 1;
    SqlConnection con = new SqlConnection("Data source=PS-PC\\SANTOSH; Database=dbSantoshTest;
    Integrated Security=true");  //connection is created.....
    protected void Page_Load(object sender, EventArgs e)
    {
        if (!IsPostBack)
        {
            loadRecord();
        }
    }
    protected void loadRecord()  //bind gridview.....
    {
        con.Open();
        SqlCommand cmd = new SqlCommand("USP_SelecttblRecord", con);
        cmd.CommandType = CommandType.StoredProcedure;
        SqlDataAdapter da = new SqlDataAdapter(cmd);
        DataSet ds = new DataSet();
        da.Fill(ds);
        int count = ds.Tables[0].Rows.Count;
        con.Close();
        if (ds.Tables[0].Rows.Count > 0)
        {
            gvDetail.DataSource = ds;
            gvDetail.DataBind();
        }
        else
        {
            ds.Tables[0].Rows.Add(ds.Tables[0].NewRow());
            gvDetail.DataSource = ds;
            gvDetail.DataBind();
            int columncount = gvDetail.Rows[0].Cells.Count;

        }
    }
    protected void gvDetail_RowDataBound(object sender, GridViewRowEventArgs e)
    {
        if (e.Row.RowType == DataControlRowType.DataRow)
        {
            id = Convert.ToInt32(DataBinder.Eval(e.Row.DataItem, "Id").ToString());
        }
    }
    protected void gvDetail_RowCreated(object sender, GridViewRowEventArgs e)
    {
        bool newRow = false;
        if ((id > 0) && (DataBinder.Eval(e.Row.DataItem, "id") != null))
        {
            if (id != Convert.ToInt32(DataBinder.Eval(e.Row.DataItem, "id").ToString()))
                newRow = true;
        }
        if ((id > 0) && (DataBinder.Eval(e.Row.DataItem, "id") == null))
        {
            newRow = true;
            rowIndex = 0;
        }
        if (newRow)
        {
            AddNewRow(sender, e);
        }
    }

    public void AddNewRow(object sender, GridViewRowEventArgs e)
    {
        GridView GridView1 = (GridView)sender;
        GridViewRow NewTotalRow = new GridViewRow(0, 0, DataControlRowType.DataRow, DataControlRowState.Insert);
        NewTotalRow.Font.Bold = true;
        NewTotalRow.BackColor = System.Drawing.Color.Aqua;
        TableCell HeaderCell = new TableCell();
        HeaderCell.Height = 10;
        HeaderCell.HorizontalAlign = HorizontalAlign.Center;
        HeaderCell.ColumnSpan = 4;
        NewTotalRow.Cells.Add(HeaderCell);
        GridView1.Controls[0].Controls.AddAt(e.Row.RowIndex + rowIndex, NewTotalRow);
        rowIndex++;
    }
}
