Insert, Update, Delete and Search by Linq with User Store Procedure

There are very simple steps for Insert, Update, Delete and Search by Linq with User Store Procedure in ASP.NET

Step 1:

We are using SQL SERVER database, so we create table tblStudent and four user store procedure



CREATE DATABASE dbSantoshTest

use dbSantoshTest

CREATE TABLE tblStudent
(
Name varachar(100), Rollno int Primary key, Branch varchar(50)
)

--Create User Store Procedure
---InserttblStudent---
CREATE PROC USP_InserttblStudent
@Name varchar(100),@Rollno int, @Branch varchar(50),@Status varchar(50) output

AS
BEGIN
 begin try
  begin tran
 Insert into tblStudent values(@Name,@Rollno,@Branch)
 set @Status='Student record has been inserted!'
 commit tran
 end try

 begin catch
 set @Status='Student record has not been inserted!'
 rollback
 end catch

END


----UpdateStudent----

CREATE PROC USP_UpdateStudent
@Name varchar(100),@Rollno int,@Branch varchar(50),@Status varchar(50) output

AS
BEGIN

 begin try
  begin tran
  Update tblStudent set Name=@Name,Branch=@Branch where Rollno=@Rollno

  set @Status='Student record has been updated!.'
  commit tran
 end try

 begin catch
 set @Status='Student record has not been updated!.'
 rollback
 end catch

END

----DeleteStudent------

CREATE PROC USP_DeleteStudent
@Rollno int,@Status varchar(50) output
AS
BEGIN
  begin try
   begin tran
   Delete from tblStudent where Rollno=@Rollno
   set @Status='Student record has been deleted!.'
   commit tran

  end try

  begin catch
   set @Status='Student record has not been deleted!.'
   rollback
  end   catch


END


-----GetStudent-----
CREATE PROC USP_GetStudent
AS
BEGIN
  Select * from tblStudent
END

Step 2:

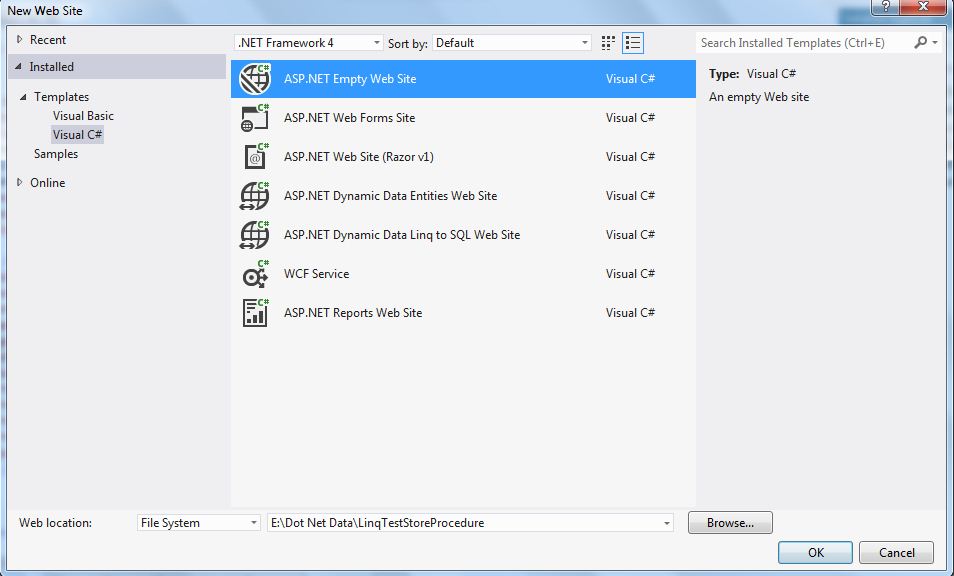

Create application and give name LinqTestStoreProcedure as shown below:-

Step 3:

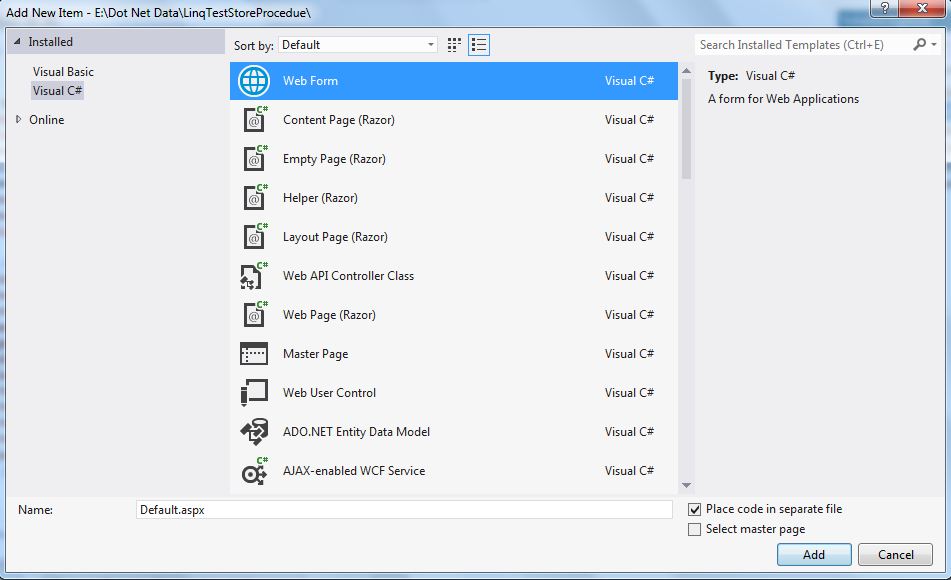

Now, Go to Solution Explorer and Right Click on LinqTestStoreProcedure -->Add-->Add New Item-->Dialog Box open and Select Webform and give name Default.aspx as shown in below:-

Step 4:

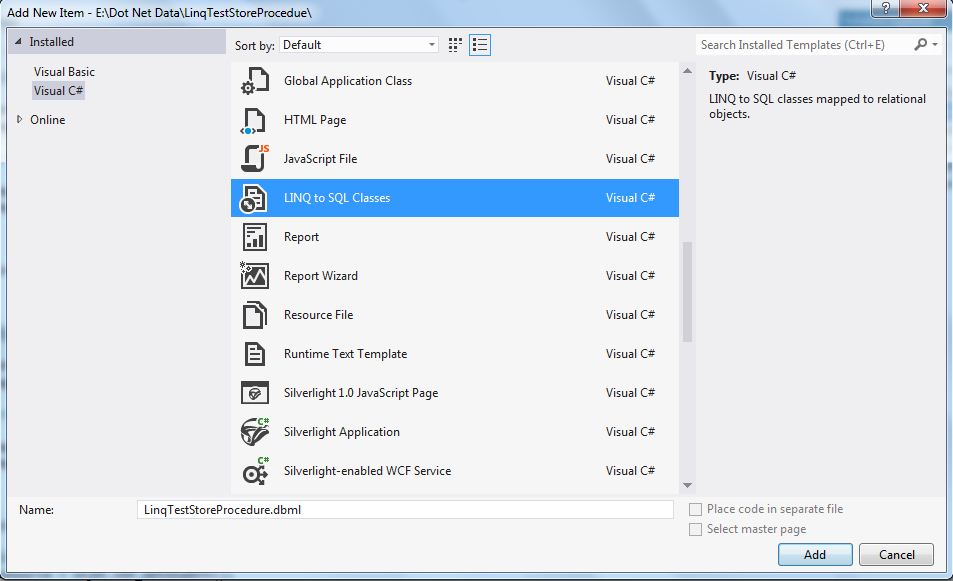

Now, Go to Solution Explorer and Right Click on LinqTestStoreProcedure -->Add-->Add New Item-->Dialog Box open and Select Linq to SQL SERVER and give name LinqTestStoreProcedureDataClasses as shown in below:-

Step 5:

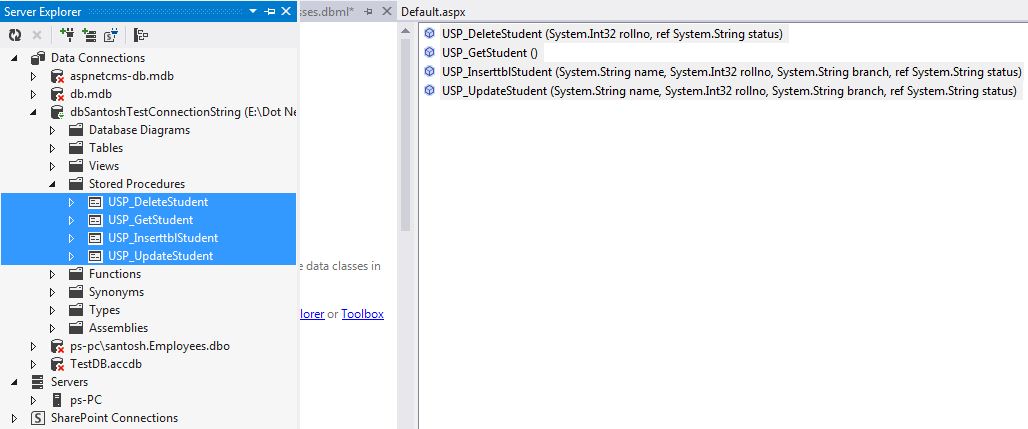

Now, Go to Server Explorer-->Stored Procedures and Drag and drop four Stored Procedures to LinqTestStoreProcedureDataClasses.dbml file as shown in below:-

Step 6:

Now, Go to Default.aspx page and write the following code:-



<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>

<!DOCTYPE html>

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title></title>
    <style>
        #div {
            background-color:#0094ff;
            color:white;
        }

    </style>
</head>
<body>
    <form id="form1" runat="server">
        <center>
    <div id="div">
        <h1>Insert, Update, Delete using stored procedures in LINQ to SQL</h1>
    <table style="height: 311px; background-color: #FFCC66; color: #000000;">
        <tr> <td colspan="2"> <asp:Label ID="lblMessage" runat="server" Font-Bold="True" ForeColor="Black"></asp:Label></td></tr>
        <tr> <td>Name </td> <td> <asp:TextBox ID="txtName" runat="server"></asp:TextBox> </td> </tr>
        <tr> <td>Roll Number </td> <td> <asp:TextBox ID="txtRollno" runat="server"></asp:TextBox> </td> </tr>
        <tr> <td>Branch </td> <td> <asp:TextBox ID="txtBranch" runat="server"></asp:TextBox> </td> </tr>
        <tr> <td> <asp:Button ID="btnInsert" runat="server" Text="Insert"  Width="150px" Height="30px" OnClick="btnInsert_Click"/> </td> <td>  <asp:Button ID="btnUpdate" runat="server" Text="Update"  Width="150px" Height="30px" OnClick="btnUpdate_Click"/> </td></tr>
        <tr> <td> <asp:Button ID="btnDelete" runat="server" Text="Delete"  Width="150px" Height="30px" OnClick="btnDelete_Click"/> </td> <td>  <asp:Button ID="btnSearch" runat="server" Text="Search"  Width="150px" Height="30px" OnClick="btnSearch_Click"/> </td></tr>
        <tr> <td colspan="2"><asp:Button ID="btnClear" runat="server" Text="Clear"  Width="316px" Height="30px" OnClick="btnClear_Click"/> </td></tr>
         </table>
         <br /> <br />
            <asp:GridView ID="gvDetail" runat="server" CellPadding="4" ForeColor="#333333" GridLines="None">
                <AlternatingRowStyle BackColor="White" />
                <FooterStyle BackColor="#990000" Font-Bold="True" ForeColor="White" />
                <HeaderStyle BackColor="#990000" Font-Bold="True" ForeColor="White" />
                <PagerStyle BackColor="#FFCC66" ForeColor="#333333" HorizontalAlign="Center" />
                <RowStyle BackColor="#FFFBD6" ForeColor="#333333" />
                <SelectedRowStyle BackColor="#FFCC66" Font-Bold="True" ForeColor="Navy" />
                <SortedAscendingCellStyle BackColor="#FDF5AC" />
                <SortedAscendingHeaderStyle BackColor="#4D0000" />
                <SortedDescendingCellStyle BackColor="#FCF6C0" />
                <SortedDescendingHeaderStyle BackColor="#820000" />
        </asp:GridView>
         <br /> <br />
    </div>


            </center>
    </form>
</body>
</html>

Step 6:

Now, Go to Default.aspx.cs page and write the following code:-



using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Drawing;


public partial class _Default : System.Web.UI.Page
{
    string Status;
    protected void Page_Load(object sender, EventArgs e)
    {

    }

    //check text box field is empty code
    public bool validate()
    {
        lblMessage.ForeColor = Color.Red;
        if (txtName.Text == "")
        {
            lblMessage.Text = "Name field should not be blank.";
            return false;
        }

        if (txtRollno.Text == "")
        {
            lblMessage.Text = "Roll number field should not be blank.";
            return false;
        }

        if (txtBranch.Text == "")
        {
            lblMessage.Text = "Branch field should not be blank.";
            return false;
        }

        return true;
    }


    //Insert  code
    private void Insert()
    {
        try
        {
            LinqTestStoreProcedureDataClassesDataContext objDC = new LinqTestStoreProcedureDataClassesDataContext();

            objDC.USP_InserttblStudent(txtName.Text, Convert.ToInt32(txtRollno.Text), txtBranch.Text, ref Status);
            lblMessage.Text = Status;
        }
        catch (Exception ex)
        {
            lblMessage.ForeColor = Color.Red;
            lblMessage.Text = ex.Message;
        }
    }

    //Update  code
    private void Update()
    {
        try
        {
            LinqTestStoreProcedureDataClassesDataContext objDC = new LinqTestStoreProcedureDataClassesDataContext();

            objDC.USP_UpdateStudent(txtName.Text, Convert.ToInt32(txtRollno.Text), txtBranch.Text, ref Status);
            lblMessage.Text = Status;
        }
        catch (Exception ex)
        {
            lblMessage.ForeColor = Color.Red;
            lblMessage.Text = ex.Message;
        }
    }

    //Delete  code
    private void Delete()
    {
        try
        {
            LinqTestStoreProcedureDataClassesDataContext objDC = new LinqTestStoreProcedureDataClassesDataContext();

            objDC.USP_DeleteStudent(Convert.ToInt32(txtRollno.Text), ref Status);
            lblMessage.Text = Status;
        }
        catch (Exception ex)
        {
            lblMessage.ForeColor = Color.Red;
            lblMessage.Text = ex.Message;
        }
    }

    //GetStudent  code
    private void GetStudentRecord()
    {
        LinqTestStoreProcedureDataClassesDataContext objDC = new LinqTestStoreProcedureDataClassesDataContext();
        gvDetail.DataSource = objDC.USP_GetStudent();
        gvDetail.DataBind();


    }

    //Clear textbox   code
    protected void Clear()
    {
        txtName.Text = "";
        txtRollno.Text = "";
        txtBranch.Text = "";
    }


    protected void btnInsert_Click(object sender, EventArgs e)
    {
        if (validate() == false)
        {
            return;
        }
        Insert();
        GetStudentRecord();
        Clear();
    }


    protected void btnUpdate_Click(object sender, EventArgs e)
    {
        if (validate() == false)
        {
            return;
        }
        Update();
        GetStudentRecord();
        Clear();
    }

    protected void btnDelete_Click(object sender, EventArgs e)
    {
        if (txtRollno.Text == "")
        {
            lblMessage.ForeColor = Color.Red;
            lblMessage.Text = "Roll number field should not be blank.";
            return;
        }
        Delete();
        GetStudentRecord();
        Clear();
    }

    protected void btnSearch_Click(object sender, EventArgs e)
    {
        GetStudentRecord();
    }

    protected void btnClear_Click(object sender, EventArgs e)
    {
        Clear();
    }
}

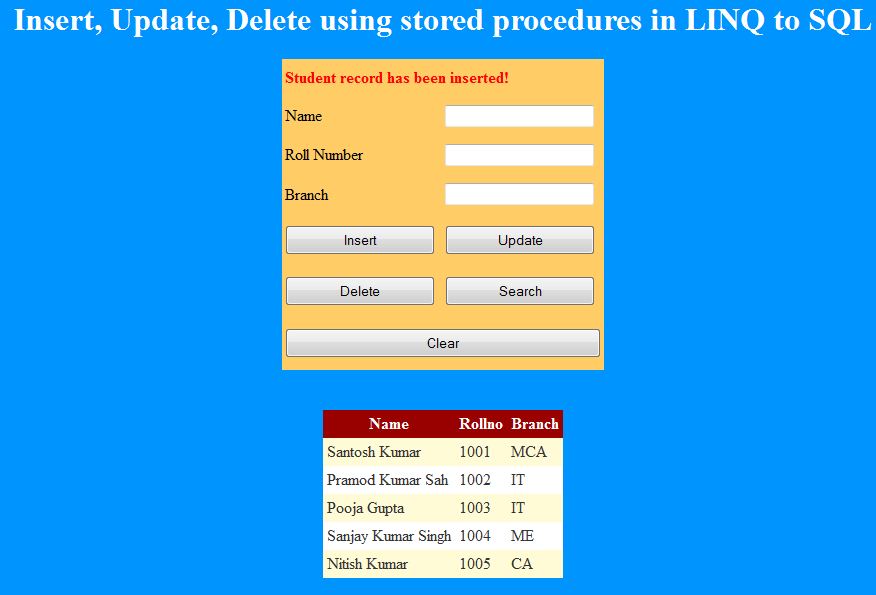

Now, run the application and perform operations.
